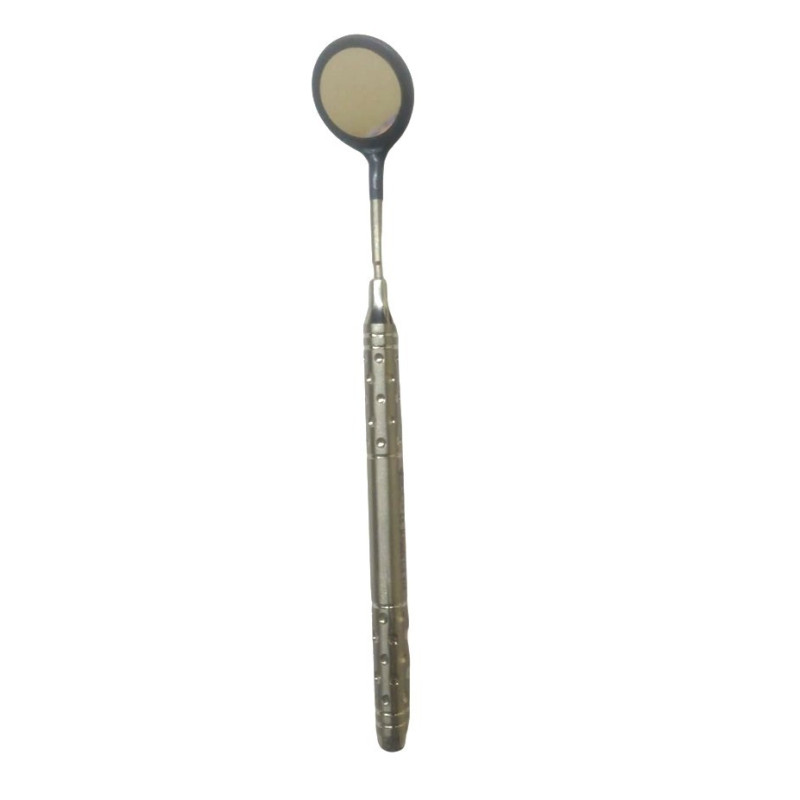

Zirc Double Sided CS Mouth Mirror Head

Zirc Dental Mouth Mirrors.

Dental Mouth mirror is an instrument used in dentistry to see different areas of the mouth and examine a patient's teeth and gums from a variety of angles.

The Double-sided Mouth Mirrors are used for indirect vision; retraction of lips, cheeks, tongue and illumination of dark areas.

• 40% brighter than rhodium mirrors
• More scratch resistant
• Reduces eye strain and fatigue
• Lens is flush with mirror frame, eliminating the possibility of corrosion build-up
• Eliminates galvanic shock
• Autoclavable up to 136°C/275°F
• Contains Antimicrobial Protection
• Washer-disinfect
• Pack of 4 pieces

Please follow the instructions for use from the manufacturer of your cleaning and sterilization equipment. Hereinafter called “see manufacturer

information”.

1. Restriction of Reprocessing: Frequent reprocessing has marginal consequences for the Mouth Mirrors. Normally the end of durability of the product will be

determined by visual degradation.

2. Preparation Before Cleaning: Place the Mouth Mirrors into your instrument holder (ex. Cassette).

3. Cleaning: There are three (3) cleaning methods that can be used to clean your Mouth Mirrors and Handles.

*Manual: Clean the Mouth Mirrors manually by washing with a non-corrosive, low sudsing neutral detergent.

*Ultrasonic: “see manufacturer information”

*Automated Washer: “see manufacturer information”

After one of the above cleaning methods have taken place. Rinse Mouth Mirrors thoroughly.

4. Drying: Dry Mirrors thoroughly before sterilization. IMPORTANT: Failure to dry the mirrors thoroughly may cause marks to be burned into the glass surface

or may lead to corrosion.

5. Sterilization: Steam sterilize for at least 5 minutes at 270° F/134° C or 20 minutes at 250° F/121° C. Do not heat above 275° F/136° C. To avoid corrosion the

steam has to be free of ingredients. Recommended critical values of ingredients for table water and steam condensate are determined according to EN 285.

Please note: After sterilization in the Autoclave, please pay attention to the drying period INSIDE the Autoclave, do not take them out before drying period ends.

DO NOT “dry-heat” sterilize.
